Split Core Current Transformer KCT Series

Views : 1132
Update time : 2025-01-04 08:16:13
Introduction

KCT range of split core current transformers have been specifically designed to be mini size which implement the installation of small space, clamp-on design could be easily fit around cables without breaking the circuit. An internal precision resistor across the secondary winding of the CT provides a low safe voltage output.

Features

The structure of the self-locking, safe, easy to install, portable

Wide inner window, allowing clamping of big cables or bus-bars

Wide range of sizes to accommodate all the existing installations

lsolated plastic case recognized according to UL94-V0

Wires plugs, Audio plugs, Power plugs and so on five kinds of plugs

Applications
Current measurement, monitoring and protection for electrical wiring and equipment.
Current and power measurement for electric motors, lighting, air compressor, heating and ventilation system, air-condition equipment and automation-control system.
Current, power and energy monitoring device.
Relay protection device.
Technical Parameter



Rated Frequency 50-2KHz
Rated Input 5A-630A
Measuring range 10%In-120%In
Rated Output 0.333V(AC)or 0-500mA
Dielectric strength 2.5KV/1mA/1min
Case Pa66/UL94-V0
Operating Teperature -25°C~75°C
Bobbin PA66
Core Ferrite.Silicon steel
Construction Tie

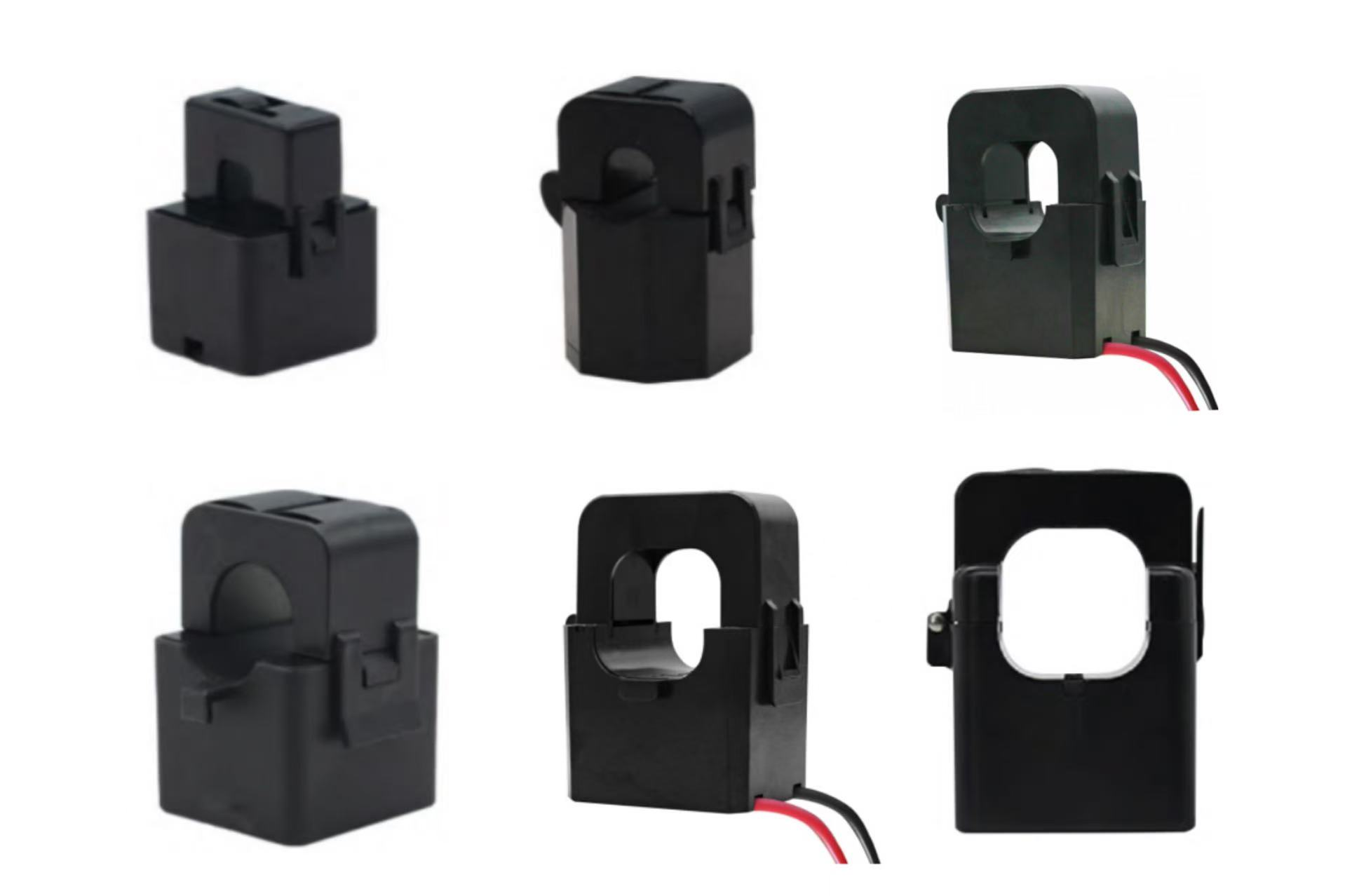

Photos



KCT-6 KCT-10 KCT-16 KCT-24 KCT-36 KCT-50
