Split Core Current Transformer HK Series

Views : 790
Update time : 2025-01-09 08:39:20
Introduction

HK range of split core current transformers are designed in particular for easy installation, the quick release button makes the ct the most convenient to fit around cables without cutting off the circuit. HK has advantages of bigger capacity and bigger mounting hole size, could be used in more power applications.

Features
One button clamp-on design, safe, easy to install, portable
Two built in fixing methods: Base; Busbar mounting
Wide inner window, allowing clamping of big cables or bus-bars
Wide range of sizes to accommodate all the existing installations
Primary current from 5A to 8000A

Applications
Current measurement, monitoring and protection for electrical wiring and equipment.
Current and power measurement for electric motors, lighting, air compressor, heating and ventilation system, air-condition equipment and automation-control system.
Current, power and energy monitoring device.
Relay protection device.
Technical Parameter



Frequency 50-400Hz
Rated Input 5A-8000A
Measuring range 5%In-130%In
Rated Output 0-5A
Dielectric strength 2.5KV/1mA/1min
Case PC/UL94-V0
Operating Teperature -25°C~75°C
Bobbin PBT
Core Silicon steel
Construction Screw

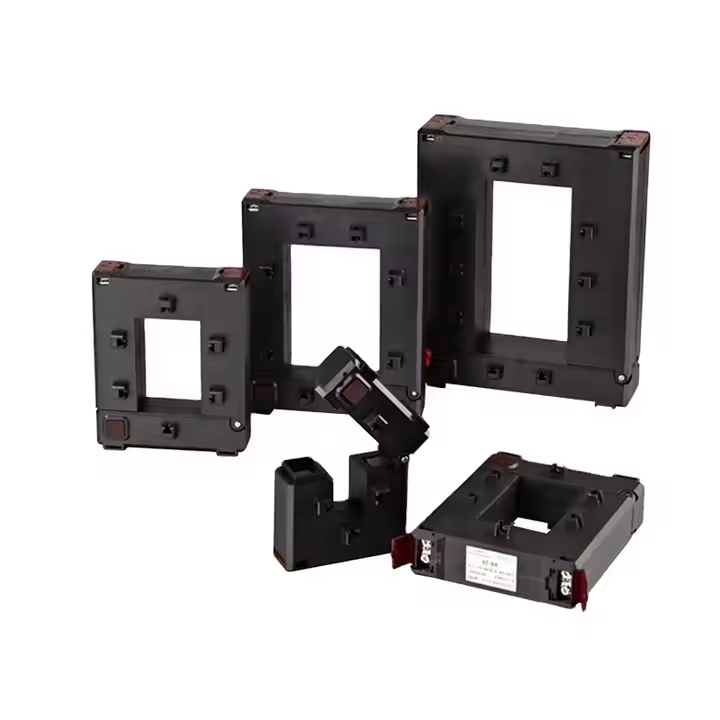

Photos



HK-23 HK-58 HK-812 HK-816


Standard

IEC61892-2, EN60044-1, VDE0414-44-1, GB1208-2006
