Three Phase Current Transformer DASN Series

Views : 778
Update time : 2024-12-31 10:04:20
Introduction

A range of 3-in-1 current transformers combine three traditional current transformers in one moulded case. 3-in-1 current transformers can be directly installed next to a three-phase moulded case circuit breaker, thus saving installation time where fitting three standard individual current transformers would be required.

Features
Cost effective moulded case
Ratio's ranging from 60/5 to 630/5
Integrated wire sealable terminal cover
Busbar, DIN-rail and metal feet mounting hardware supplied
Combined M4 posi/slot screw Specifications

Applications
Current measurement, monitoring and protection for electrical wiring and equipment.
Current and power measurement for electric motors, lighting, air compressor, heating and ventilation system.
Current, power and energy monitoring device.
Relay protection device.
Technical Parameter



Rated Frequency 50/60Hz
Withstand Voltage AC3kV (1 min)
Rated Thermal Current 60In
Dynamic Current 2.5lth
Rated Voltage AC0.72kV
Overload 1.2ln
Operating Teperature -10°C~50°C
Flame-retarded Rating V0
Accuracy Limit Factor FS 5
Secondary Current 5A, 1A

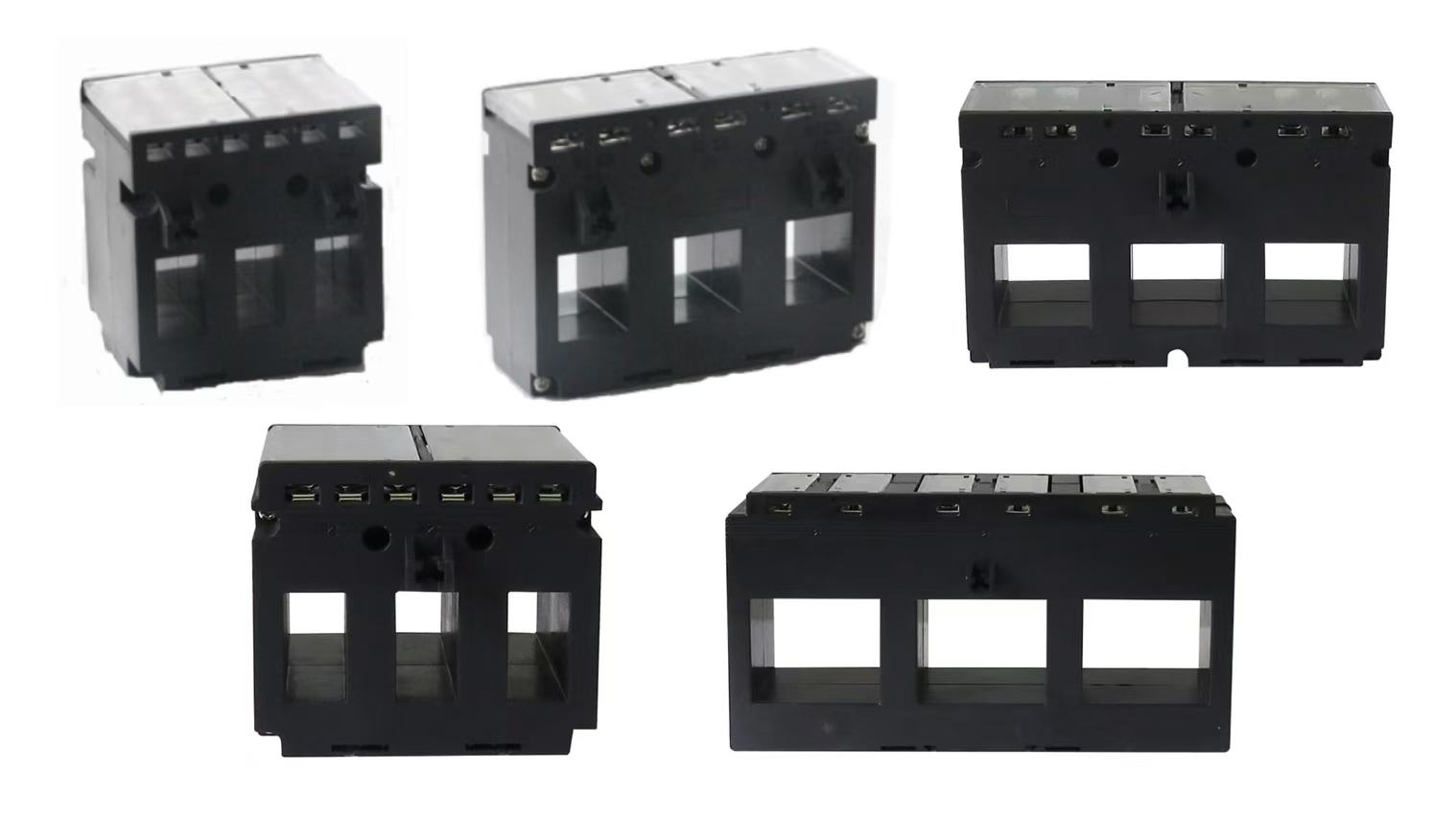

Photos



DASN240 DASN242 DASN248 DASN249 DASN250


Standard

IEC61892-2, EN60044-1, VDE0414-44-1, GB1208-2006
