Split-Core Current Transformer with International Standards

1. Product Overview

The KCT series core balance current transformer produced by ASCT is a compact, micro current transformer that is wound around a cable to test AC current. It features a smooth design and can be used in narrow spaces. It is portable and does not interrupt circuit operation. This versatile voltage transformer is perfect for a variety of applications in both residential and industrial.

2. Main Features

Excellent Environmental Tolerance
The housing and leads of this device are made from PA66 70G33L (epoxy resin) and UL1015 22AWG 600V 105°C materials, that's why it can be operated in environments ranging from -20°C to 75°C with approximately 85% atmospheric humidity. It meets the UL94-V0 standard, providing excellent flame retardance and can adapt to most global environmental conditions.

Variety of Models
The KCT series comes in multiple specifications, including KCT-6, KCT-10, KCT-16, KCT-24, KCT-36, and KCT-50. The models offer various current ratios and inner diameters, it's flexible and beneficial for users to use.

Color Options for Housing
The product is available in black and white housing colors, to meet different needs.

Multiple Plug Types
This product offers five different plug types, including wire plug, audio plug, and power plug,Suitable for various scenarios.

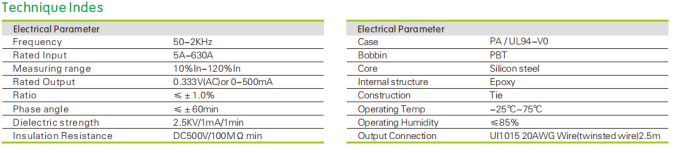

3. Product Specification Table

4. Comparison with peers

Compared with similar products, we have two major advantages. Firstly, our casing is made of American Dopoun nylon material. It is superior to the common PA66 material and completely eliminates the possibility of material reuse.This will bring greater safety risks. Secondly, our products are neatly cut and have relatively better magnetic conductivity.

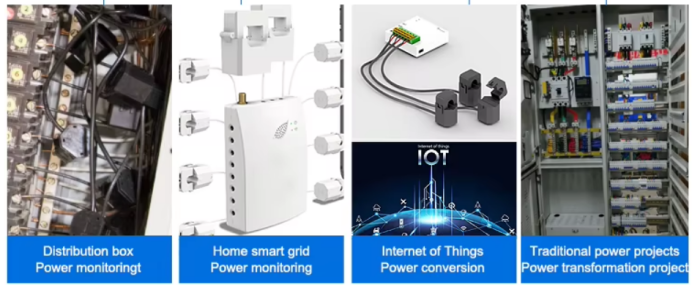

5. Four Major Application Scenarios:

These product is primarily used for current and voltage detect and convert insmart home appliances, IoT devices, current measurement in distribution boxes, and voltage or current conversion in traditional electrical power projects. Its ease to install and the insulating properties of its housing ensure that there is no risk of electric leakage during product installation and measurement. The core balance current transformer feature provides additional safety and precision when balancing electrical systems.

6. Customer Services (OEM, ODM)

ASCTi Electric can produce customizable current transformer with OEM/ODM support, offering:Logo customization 、Custom product models、Factory pre-testing reports and calibration certificates，Additionally, product manuals and installation instructions are provided to ensure customers can quickly begin using the product.
