1. Why do Jordanian engineers need reliable current data in low voltage projects?
Factories, shopping malls and infrastructure in Jordan depend on a constant 400V or 415V distribution system. However, the current undetermined information may not allow engineers to detect overweight donations， to compare device usage and uncover false usage conditions. A reliable current transformer converts an original high current into a safe, natural signal and helps engineers get clearer electrical data. without connecting the measuring device directly to high current circuits.

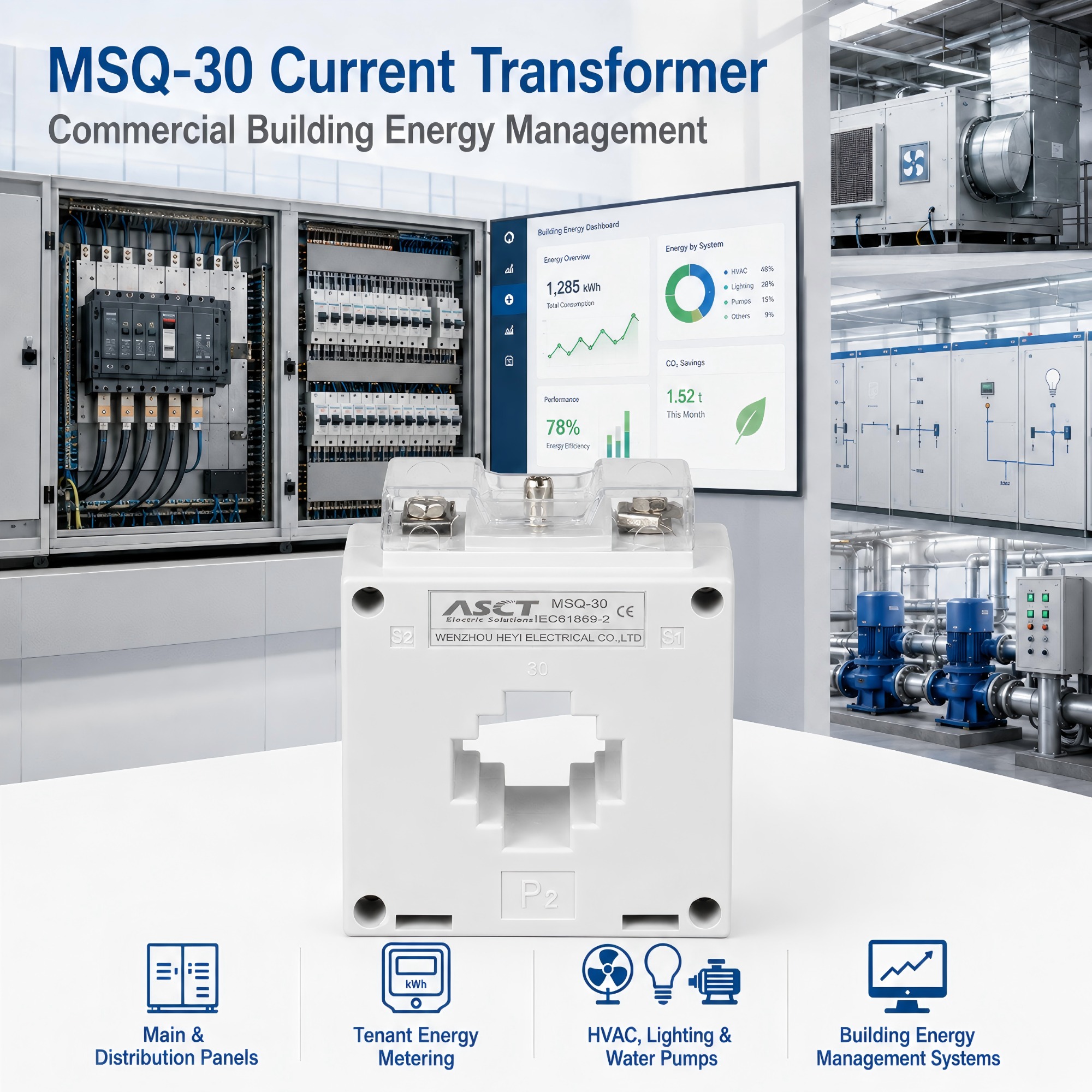

2. How does MSQ-30 support energy management in commercial homes?
2.1 Energy measurement on main and sub-distribution plates
Commercial buildings such as offices, malls, hotels, and residential buildings often contain several levels of distribution. Technicians must measure the flow of incoming email addresses and people in the areas to understand where energy is used.
The MSQ-30 can be used as a current transformer for energy metering, ensuring standardization 2. Sign 5A for compatible digital power meters and amps. The offered ratio ranges from 30/5A to 300/5A, so engineers can select a model that matches the actual donor current.
As a low voltage current transformer for electrical panel installations, the MSQ-30 supports programs such as:
- Low Voltage Main Connectors
- Sub-distribution panels
- Current measurement
- Energy Management System Buildings
- Cabinets for monitoring electrical loads
Its compact construction also makes it a window type current transformer for distribution board projects where installation space is limited. Cables or bumps pass through the internal window, while screw mounting and end connections help maintain a stable mounting.
2.2 Monitoring with HVAC, lighting and water pumping systems
HVAC appliances, lighting rings and water pumps can be an essential part of the electricity consumption of commercial homes. Without monitoring traffic volume, installation technicians may have difficulty determining which plant is responsible for peak load or increased energy costs.
The MSQ-30 current transformer can signal current for:
- Air Conditioning
- Systemic ventilation
- Pumping line
- Circuits Distribution Information
- Building auxiliary equipment
When connected to a compatible measuring device, the 5A current transformer for digital power meters helps engineers compare workloads, evaluate equipment graphics, and identify schemes with peculiar current changes.

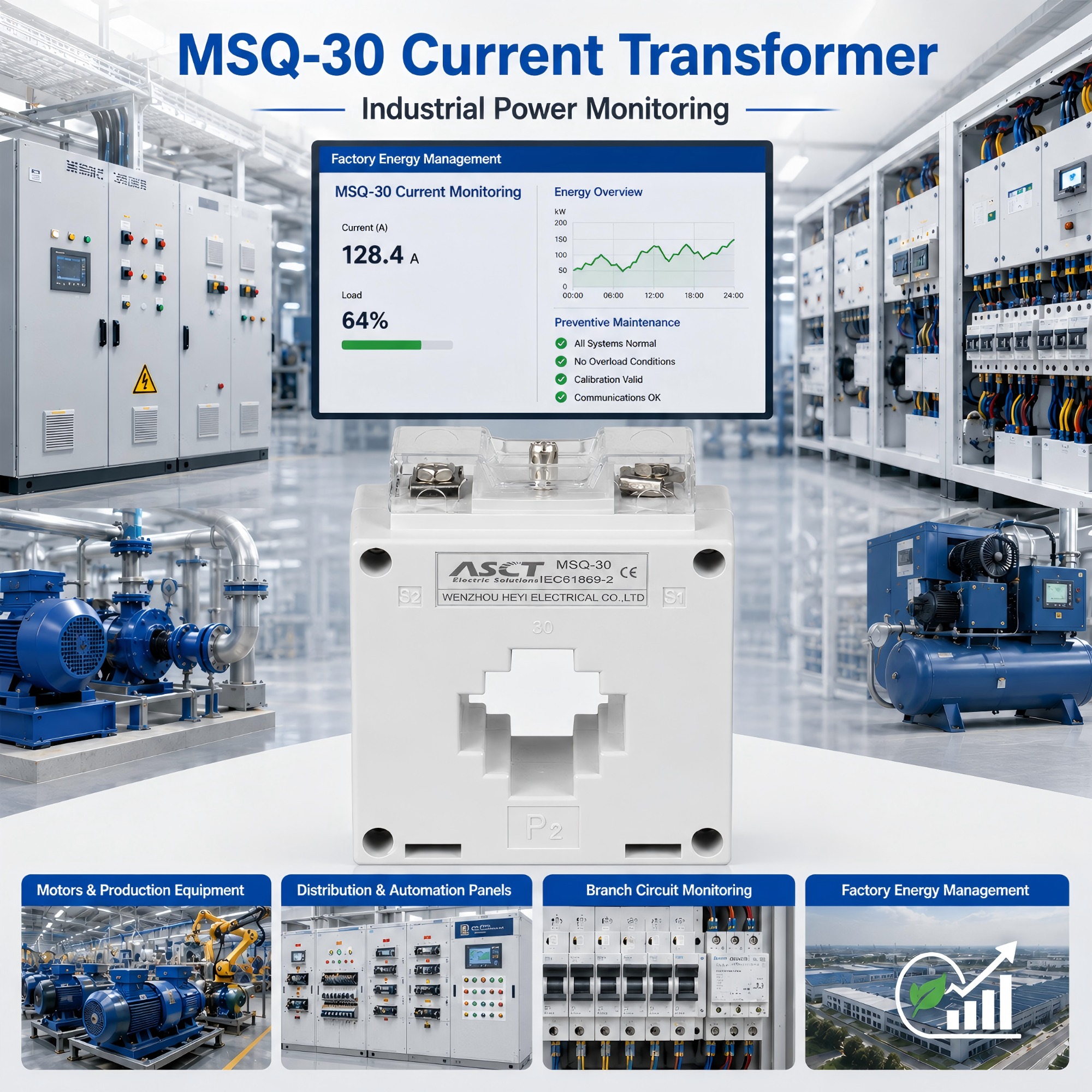

3. How does MSQ-30 improve industrial project supervision?
3.1 Exchange for machinery and manufacturing facilities
Jordanian factories operate machines, aircraft, conveyors, pumps and production machines with different load conditions. If the current increases unexpectedly, engineers need reliable data to determine whether the cause is high mechanical load. is an operating problem or an installation that is not working.
The MSQ-30 can serve as a current transformer for industrial power monitoring in applications such as:
- Panel Control Machine
- Płyty Distribution Factory
- Ventilation system
- Pump Equipment
- Production Machinery
- Industrłowe energy carriers
Measuring in the range of 5% to 120% of rated current, the MSQ-30 helps engineers observe natural load changes under different conditions of use. Its 50/60 Hz frequency also allows integration into general industrial AC systems.
3.2 Monitoring with Diagnostic Circuits in Automation
Industrial automation systems often include several suppliers that supply controls, machines, and auxiliary machines. Monitoring the main entry cycle alone cannot provide enough information to locate an item that does not work or is overweight.
When installing the MSQ-30 current transformer on the selected circuit, engineers can collect separate current data for different loads. Support for:
- Energy Production Line Analysis
- Monitoring device usage status
- Comparison of electrical load
- Preventive maintenance plan
- Energy Management Factory
The MSQ-30 offers the possibility of accuracy in class 0.5 or class 1.0, depending on the ratio chosen. Rated terms range from 1VA to 10VA, allowing engineers to adapt the product to compatible computer and wiring conditions.
4. How should engineers integrate MSQ-30 with power plants in Jordan?
4.1 Choose the appropriate proportion, accuracy and load
Choosing the proportion should generally be equal to or only slightly higher than the expected maximum flow from the donor. If, for example, the maximum working current is 180A, engineers can consider the 200/5A type, as long as the load and load accuracy meet the measurement requirements.
Before engineers decide on an current transformer, they must determine:
- Normal and maximum load current
- An additional 5A input is required
- Measurement quality requirements
- International warranty for meters and cables
- Easter Size Cable
- Assembly rooms available
There are options in class 0.5 for MSQ-30 connections from 100/5A to 300/5A. The most detailed proportions are generally available in category 1.0. They should avoid choosing a significantly higher proportion than the actual load, as this can reduce the useful low-current measurement resolution.
4.2 Confirmation of voltage and working environment
The MSQ-30 has a rated voltage of 0.72 kV AC and is designed for low voltage use. Cannot be connected directly to 11 kV or 33 kV conductors.

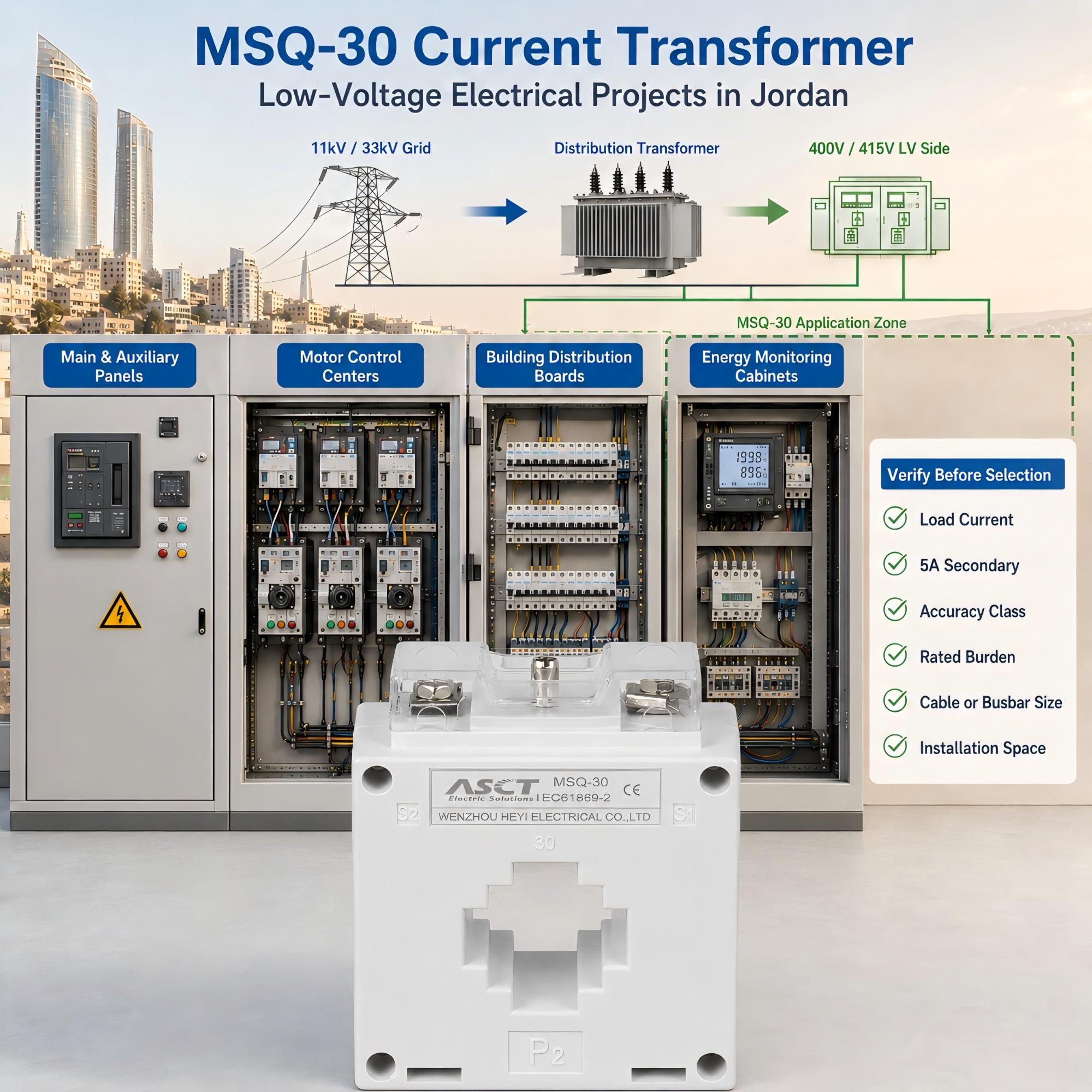

In installations powered by 11kV or 33kV networks, the current transformer can be installed on the main 400V or 415V part, including:
- Low Voltage Main Connectors
- Performance Help Panel
- Management Centers
- Plates Distribution Buildings
- Looking for supervised energy
The MSQ-30 uses the UL94-V0 computer housing, PBT coil, and Crime Steel core. Operates at temperatures from -25 °C to +75 °C at humidities up to 85 %. IEC 61869-2 compliance helps engineers integrate products with IEC-oriented low voltage projects.
5. Why choose MSQ-30 for low voltage use in Jordan?
The MSQ-30 current transformer offers a range of ratios from 30/5A to 300/5A, a standardized 5A output and a compact window for commercial homes, factories, HVAC systems, pumps and low voltage distributors.
If you are planning an energy measurement, industrial supervision or power cable project in Jordan, contact HEYI Electrical. Send us current measurements to email address, cable or belt, computer input, accuracy class and required load and our technology helps you choose the right MSQ-30 model and provides information on production, drawing size and project value.
