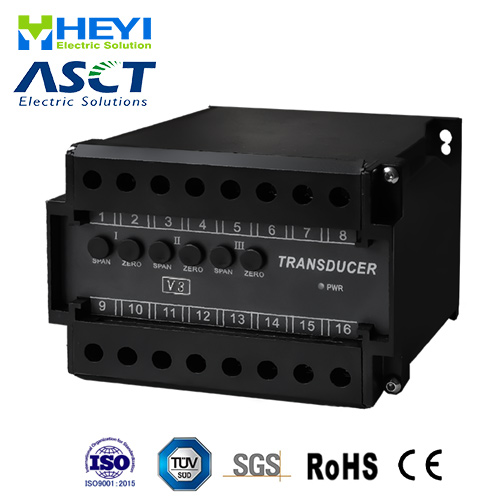

Three phase voltage transducer are essential components in electrical systems for monitoring and controlling electrical voltages in three-phase circuits. They play a pivotal role in converting voltage levels in each phase into standardized output signals, facilitating real-time monitoring and data acquisition.
In summary, three phase voltage transducer are essential components in electrical systems for monitoring and controlling three phase voltage. They find applications in power distribution, motor control, renewable energy systems, and ensuring power quality in various industrial, commercial, and critical facility settings. These transducers are integral for maintaining the stability, safety, and efficiency of electrical systems.
Technical Data
AC voltage Input | 100V,300V ,450V,600V etc. |
Allow overload | Voltage×1.2 times the nominal value lasts; |
Voltage×2 times the nominal value 5s | |
Accuracy | 0.2%、0.5% |
Response time | ≤400ms |
Output Voltage | 0~ 10VDC, 0~ 5VDC (load resistance = input voltage /10mAdc) |
Output Current | 0~20mAdc ,4~20mAdc(Load Resistance = 10Vdc / output current) |
Output ripple | ≤0.5% RO peak |
Work environment temperature and humidity | 0~50℃/<80% relative humidity(no condensing) |
Storage conditions temperature and humidity | -20~70℃/ less than 70% relative humidity (no condensation) |
Aux.Power supply | AC/DC 80V~270V can be customized special specifications (DC12V, 24V, 48V) |
Isolate | Input/output/power/shell |
Power consumption | DC about 3W, AC about 4VA |
Shell material | ABS fireproof material |
weighs | about 550 grams |
Compressive strength | AC2Kvrms /min |
Insulation resistance | more than 100 m Ω DC500V |
Shape and size | 120 (L) × 110 (W) × 75 (H) mm |
Installation | 35mm standard guide rail or fixed on the cabinet |

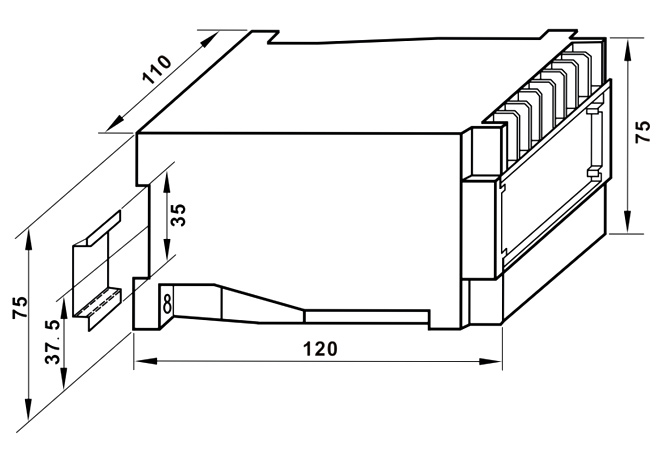

Dimension |
