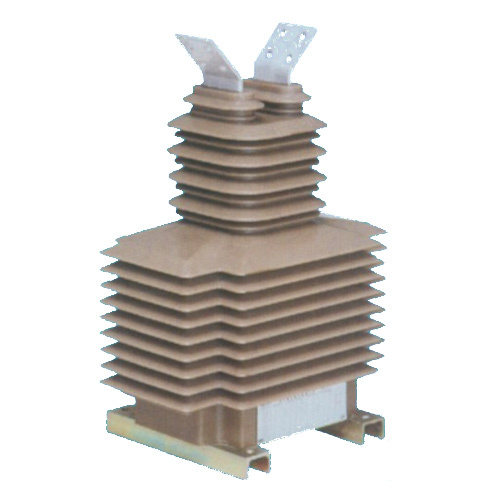

LZZBJ71-35W GY current transformer
LZZBJ71-35W GY current transformer LZZBJ71-35W GY current transformer LZZBJ71-35W GY current transformer
  • LZZBJ71-35W GY current transformer

LZZBJ71-35W GY current transformer

Item No.: LZZBJ71-35W GY
The product has high accuracy and dynamic thermal stability and high resistance to dirt and moisture resistance characteriatics,surface creepage distance is greater than 1200mm.
Add to Inquiry
Description
Description
Introduce

The current transformer outdoor epoxy casting .

The product has high accuracy and dynamic thermal stability and high resistance to dirt and moisture resistance characteriatics,surface creepage distance is greater than 1200mm,and is especially suitable for outdoor and high and high altitudes.

This product made according to user requirements of a variable ratio and multi-winding.For outdoor 35kV line current,energy measurment and protection.

Technical Parameter



TRANSDUCER
Rated insulation level 40.5/95/185kV
Load power factor 0.8(lag)
Rated secondary current 5A
Product standard GB1208
Safety factor
 FS<10



Specification



Rated primary current Accuracy class Rated secondaryoutput 1second heat current Dynamic current
0.2S 0.2 0.5 10P10
30-100 0.2/0.2, 15 30 30 50 150lth/2 375Ith
150 0.2/0.5, 31.5/1 80
200 0.5/0.5, 31.5/2 80
300-500 0.2/10P10, 31.5/3 80
600-800 0.5/10P10, 30 40 31.5/4 80
1000-2000 0.2S/0.5/10P10 14702 100

Dimensions



LZZBJ71-35W GY



Accuracy test
