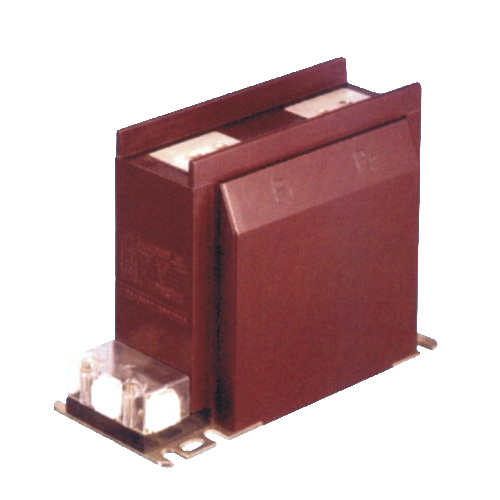

LZZBJ12-10/150b/2s current transformer

LZZBJ12-10/150b/2s current transformer

Description

Description

Introduce

The current transformer for epoxy resin casting the pillar structure of the fully closed.The use of advanced materials and processes,suitable for indoor AC 50-60Hz,Rated voltage of 10kV and below the power system for the current use of energy measurment and relay protection.

Features

The current transformer is the pillar structure,the use of epoxy pouring full-closed,resistant to pollution and humidity,but also suitable for tropical regions.

The transformer does not require special maintenance,just on a regular basis to remove surface dirt.Completely closed due to current transformer with epoxy resin casting.

Small size,Suitable for any location,and installed in any direction.

Technical Parameter

TRANSDUCER
Rated insulation level	12/42/75kV
Load power factor	0.8(lag)
Rated secondary current	5A
Product standard	GB1208
Safety factor	FS<10

Specification

Type	LZZB12-10/150b/2s(two winding)
	Accuracy class	Rated secondary output			1 second heat current	Dynamic current
		0.2	0.5	10P10
20-200	0.2/0.5,0.2/10 P,0.5S/10P	10	15	15	100Iln	250Iln
300					31.5	40
400					45	112.5
500
600					63	130
800					80	160
1000
1200					100	160
1250
1500
1600

Type	LZZB12-10/150b/2s(three winding)
	Accuracy class	Rated secondary output			1 second heat current	Dynamic current
		0.2	0.5	10P10
20-200	0.2/0.5/10P10 ,0.5/0.5/10P10	10	10	10	100Iln	250Iln
300					31.5	80
400					45	112.5
500
600		15	15	15	63	130
800					80	160
1000
1200					100	160
1250
1500
1600

Dimensions

LZZB12-10/150b/2s

Accuracy test
