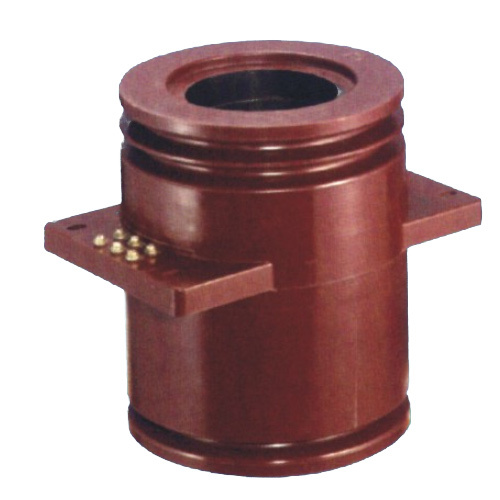

LMZB3-10Q current transformer
LMZB3-10Q current transformer LMZB3-10Q current transformer LMZB3-10Q current transformer
  • LMZB3-10Q current transformer

LMZB3-10Q current transformer

Item No.: LMZB3-10Q
The current transformer has epoxy resin casting,bus-style indoor-type products,for the rated frequency 50Hz ,rated voltage of  10kV line for the current ,electrical energy,electrical power measurment and relay protection.
Add to Inquiry
Description
Description
Introduce

This type of transformer is the bus structure ,the core cold-rolled silicon steel strip wound into the ring.

The secondary winding evenly along the circumference around the system in the core of a bus, not accompanied by clamping the bus device.

Features
This type of transformer  bus fenestrae within the equipotential lines.Run-time access on the bus to prevent the production of corona.
LMZB-10Q current transformer flange and casting body into one,the narrow dimensions of less than the diameter if the casting body is  conducive to shrink the size of the switch cabinet space.
Technical Parameter



TRANSDUCER
Rated insulation level 12/42/75kV
Load power factor 0.8(lag)
Rated secondary current 5A
Product standard GB1208
Safety factor FS<10



Specification



Rated primary current Rated Secondary current Accuracy class rated output
0.2,0.2S 0.5 10P
1000 ,1200 5A,1A 10 10 15
1500 10 15 20
2000 ,2500 ,4000 ,5000 20 20 20

Dimensions



LMZB3-10Q



Accuracy test
