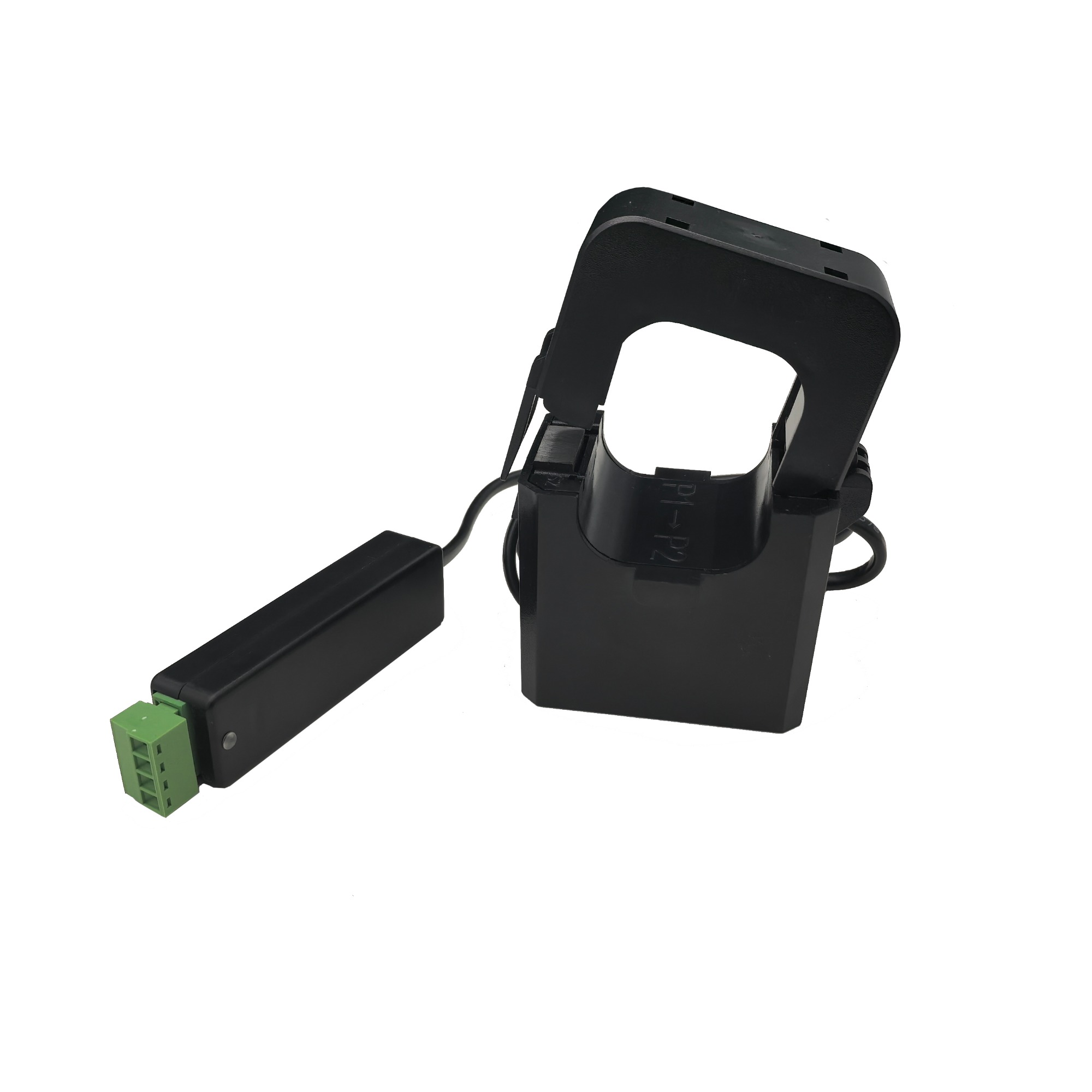

Split Core Current Transducer output 4-20mA for IoT Gateway
Features
1. Away from strong magnetic interference, performance and linearity are more stable
2. We have a normal working indicator light for the power supply, which can visually tell whether the device is working properly
3. The circuit board is specially designed with reverse connection protection for the power supply, so if the power supply is connected incorrectly, the device will not burn out
4. Our core chip is from the top international brand TI
| Operating temperature | -20℃～60℃ |
| Primary current(A) | 0-600A |
| Output | Current 4-20mA, 0-20mA Voltage 0-10V, 0-5V, 2-10V, 1-5V |
| Weight | 340g |
| Storage temperature | -20℃～70℃ |
| Altitude | No more than 1000 m |
| Accuracy | 0.5% |
| Bandwidth | 25-1KHz |
| Dielectric strength | 3.0KV/1mA/1min |
| Temperature Drift | ±100PPM/℃ |
| Response time | ≤200mS |
| Dielectric strength | 2.5KV 50Hz 1min |
| Zero offset | ±0.03mA |

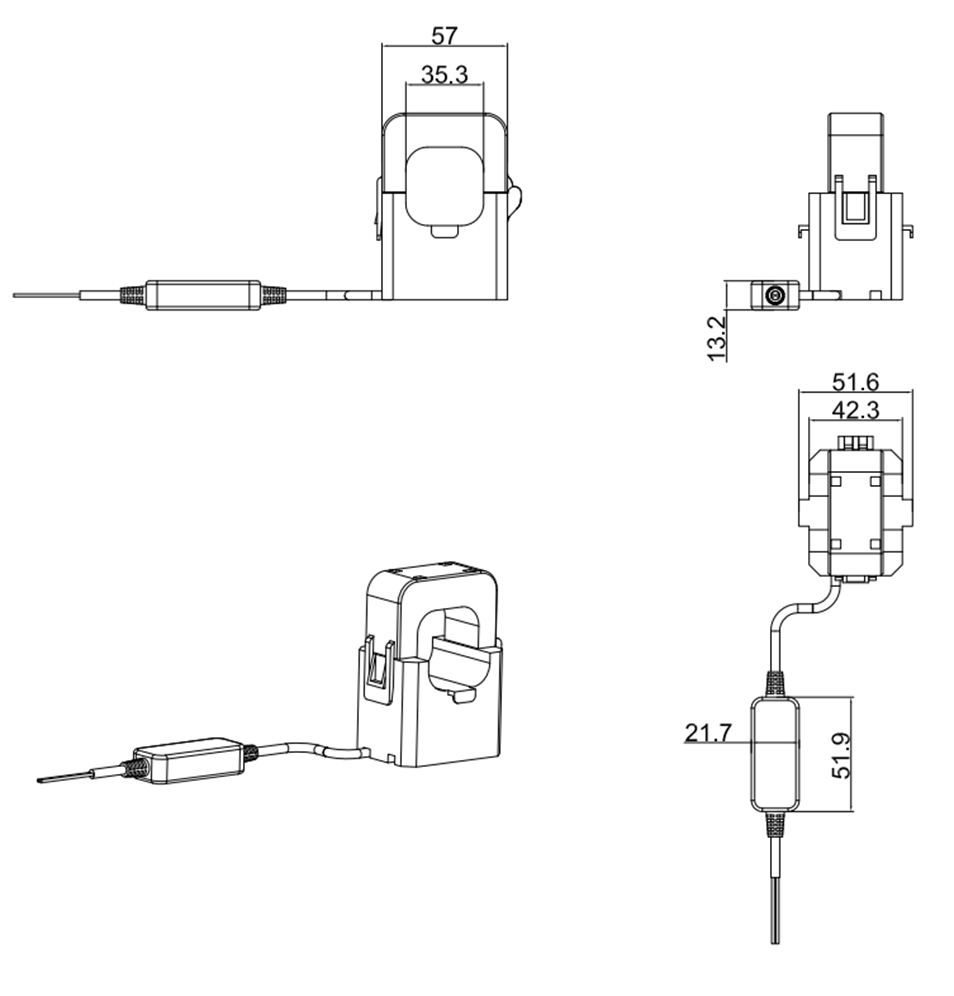

Dimensions
| KCT36-2L |
  |
