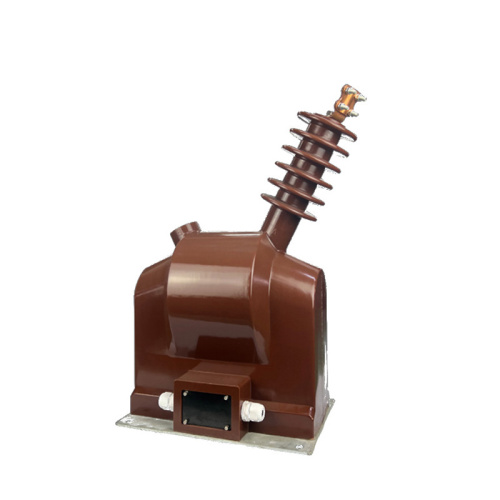

JSZXW-15W voltage transformer

JSZXW-15W voltage transformer

Description

Description

Introduce

JDZXW-15 voltage transformer is suitable for AC power system with rated frequency of 50Hz or 60Hz and rated voltage of 15kV for electric energy measurement, voltage measurement and relay protection.

Normal working/installation conditions:

1.Installation place:Outdoor

2.Ambient temperature: the highest temperature is 40 ℃ , the lowest temperature is -5 ℃ , and the daily average temperature does not exceed 30℃ .

3.Atmospheric conditions: There is no serious pollution in the atmosphere.

Feature:

This series of voltage transformers is a pillar-type structure, which is fully enclosed with epoxy resin, which is resistant to pollution and humidity. It is also suitable for use in tropical areas. The transformers do not require special maintenance.

Waterproof connectors are installed at the secondary outlet terminals of the transformers.

There is a hole on the front and side of the terminal box, which is matched with the outlet end for wiring, which is safe andreliable.\
There are grounding bolts and four mounting holes for installation on the bottom plate of the product.

Technical Parameter

Product name	Rated voltage ratio (kV)	Accuracy	Rated output (VA)	Limit output (VA)	Rated insulation level (KV)

JDZXW-15	15/ √ 3/0.1/ √ 3/0.1/3	0.2/3P	15/50	200	17.5/55/105
		0.5/3P	30/50

Dimensions

LZZBW-15

Accuracy test
