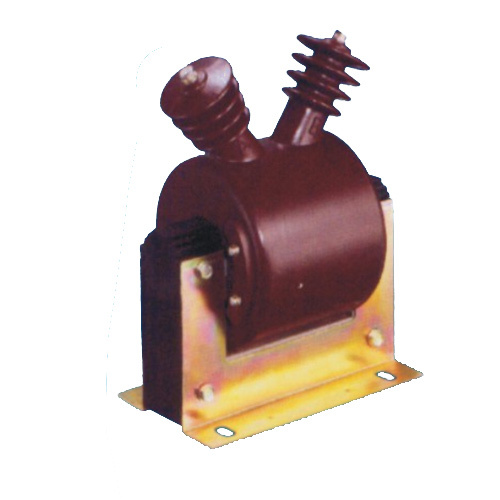

The voltage transformer of this type epoxy resin cast semi-enclosed indoor applicable to the exchange of 50Hz.Rated voltage 10kV and electricity system.
| TRANSDUCER | |
| Load power factor | 0.8(lag) |
| Pollution class |
Class II |
| Product standard | GB1207 |
Specification
| Type | Rated voltage ratio | 220Vwindings rated capacity | 100V windings rated capacity | Reted insulating level | |||
| 0.2 | 0.5 | 1 | 3 | ||||
| JDZC-6 | 6/0.22 , 6/0.22/0.1 | 1500 | 30 | 80 | 150 | 300 | 7.2/30/60 |
| JDZC-10 | 10/0.22 , 10/0.22/0.1 | 1500 | 12/45/75 | ||||
| JDZC1-6 | 6/0.22 , 6/0.22/0.1 | 800 | 7.2/30/60 | ||||
| JDZC1-10 | 10/0.22 , 10/0.22/0.1 | 800 | 12/42/75 | ||||
Dimensions
| JDZC1-6/10 | JDZC-6/10 | ||
 |
 |
||
Accuracy test
