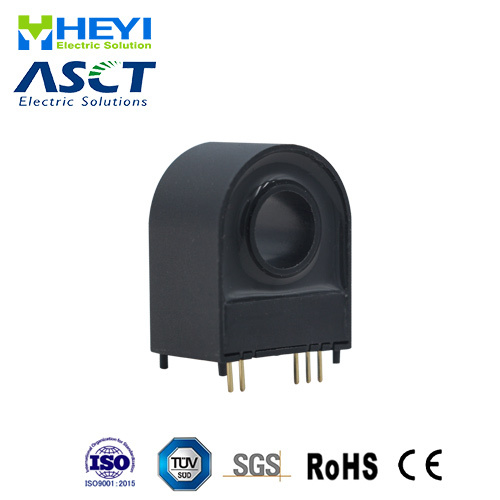

RCD/RCMU HYCA-10/PD Type B Residual Current Sensor

Description

Introduce

Residual current monitors (Residual-current device) HYCA-F10 type

Residual current monitors model HYCA-F10 is a specialized leakage current sensor designed for wall-mounted electric vehicle (EV) charging stations. This sensor is engineered to ensure the safety and reliability of the EV charging process. HYCA-F10 employs advanced technology for precise leakage current detection and offers various customization options to meet the specific needs of different customers.

Applications

1.Portable EV charger（Mode 2 IC-CPD）

2.AC Charging pile、Wallbox（Mode 3 EV charger）

3.Mode 4 EV charger

4.Ground fault detection

5.DC system leakage current detection

6.Photovoltaic inverter residual current detection

Features:

Accurate Leakage Current Detection: HYCA-F10 sensor offers high-precision leakage current detection with rapid response, significantly reducing the risk of electric shocks.

Compliance with International Standards: The sensor complies with international electrical safety standards, providing reliable electrical safety assurance to customers.

Customization Services:
HEYI Electric is committed to providing customization services. Depending on customer needs, we can adjust the design and specifications of the HYCA-F10 sensor to meet the specific requirements of individual projects. Whether it’s personalized logos or special dimensions, we can tailor our product to ensure your charging equipment meets the highest standards and performance requirements.

Technical Parameter

Model	Corresponding standards	DC trigger threshold	AC trigger threshold
HYCA-10/PD	IEC62955	6mA	30mA

Absolute maximum ratings (not operating)
Electrical data	Symbol	Unit	Specification	Conditions
Load dump vervoltage	UC	V	32	400ms
Over-voltage	UC	V	25	1 minute
Reverse polarity	UC	V	-16	1 minute
Minimum supply voltage	UCmin	V	6	Continuous not operating
Maximum supply voltage	UCmax	V	18	Continuous not operating←
Creepage distance	dcp	mm	7.2
Clearance	dci	mm	6.9
RMS voltage for AC insulation test	Ud	KV	2.5	50HZ, 1minute
Insulation resistance	Rins	MΩ	500	500 V iso 16750-2

Electrical data – Ratings:
Action current	Unit	Min.	Typ	Max.
Operating current AC	mA	20	22.8	26
Operating current A0	mA	11	15	30
Operating current A90	mA	10	18	30
Operating current A135	mA	10	24	35
Operating current 2PDC	mA	3.5	5	7
Operating current 3PDC	mA	3.1	4.6	6.2
Operating current S-DC	mA	3	4.6	6
Operating current F	mA	18	24	38

Wav	Fre.q	Unit	Current	Typ
AC	50HZ	ms	30mA	60
AC	50HZ	ms	60mA	30
AC	50HZ	ms	150mA	15
AC	50HZ	ms	5A-100A	15
A0	50HZ	ms	42mA	38
A0	50HZ	ms	84mA	30
A0	50HZ	ms	210mA	25
A0	50HZ	ms	42mA+6mADC	38
A0	50HZ	ms	84mA+6mADC	30
A0	50HZ	ms	210mA+6mADC	25
S-DC	-	ms	6mA	120
S-DC	-	ms	60mA	25
S-DC	-	ms	300mA	25
2PDC/3PDC	50HZ	ms	60mA	25
2PDC/3PDC	50HZ	ms	120mA	20
2PDC/3PDC	50HZ	ms	300mA	20
2PDC/3PDC	50HZ	ms	5A-50A	15
F	-	ms	210mA	15
