Shunts are used to measure DC current, produced by the principle of resistance when a voltage is generated across the resistor according to DC current.
FL-13 shunt for Russia shunt, the company was named to be improved with the FL-13 shunt, over the selection and identification.
| TRANSDUCER | |
| Standard for the Installation | IEC 61010-1:1990 |
| Accuracy class | Class 0.5 |
| Temperature |
-40~+60ºC |
| Relative humidity | ≤95 (35ºC) |
| Overload performance | 120% rated current value, 2 hours |
| Voltage drop |
75mV |
Specification
| Applications | Choke |
| Encapsulated form | Common inductance |
| Winding form | monolayer-wound |
| Nature guide magnet | copper core |
| Core shape | SHAPE |
| Operating frequency | high-frequency |
| Installation | horizontal unsealed |
| Reinforcing materials | Bakelite |

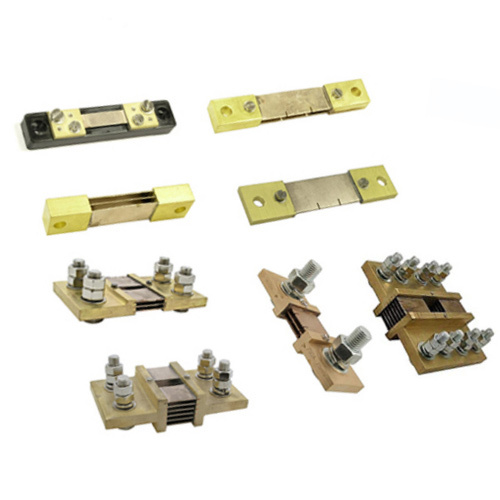

Product overviews
| 5-50A | 75-100A | 150A |
 |
 |
 |
| 200A | 300A | 500A |
 |
 |
 |
| 750A | 1000A | 1500A |
 |
 |
 |
| 2000-4000A | 5000-6000A | 7500A |
 |
 |
 |
Accuracy test
