Current-Voltage Transformer
Current-Voltage Transformer Current-Voltage Transformer Current-Voltage Transformer
  • Current-Voltage Transformer

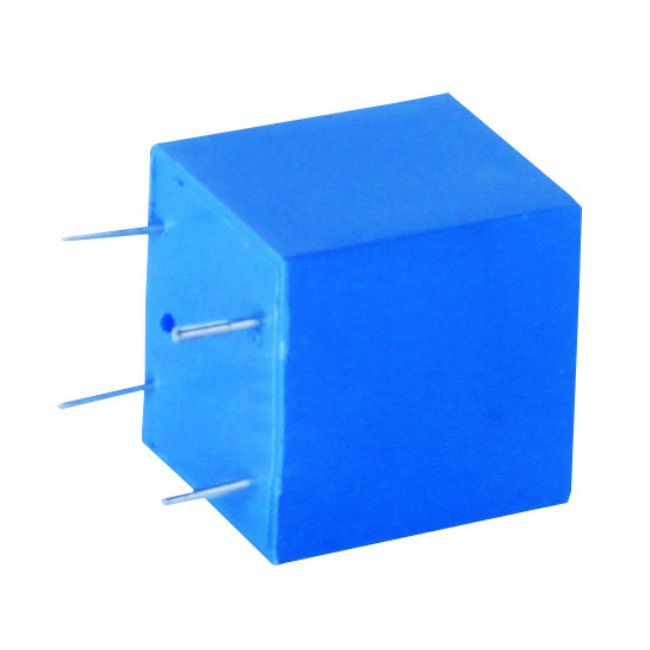

Current-Voltage Transformer

Item No.: PT-40(1,2)
The primary lead wire could be pin, soft wire as well as tin-plated copper-core wire,the secondary lead wire is pin format, which can be directly welded on a PCB.
Add to Inquiry
Description
Description
Introduce

The secondary lead wire is pin format, which can be directly welded on a PCB，the primary lead wire could be pin, soft wire as well as tin-plated copper-core wire,tinear output current, high precision.

Features
Completely-enclosed, good mechanical behavior, suitable environments, strong voltage.
Isolation ability, delicate appearance;
Small volume, light weight, easy for installation;
Encapsulated with epoxy resin to ensure strong insulation ability;
PBT anti-combustion plastic casing.

Specification



Model Specifi cations Rated Pr.Current Max. Current Rated Sec. Current (mA) Rated sampling voltage Load Resistance(Ω) Accuracy Class
PT-401 2A/2mA 2mA 10mA 2mA 100mV 50Ω 0.1
5A/5mA 5mA 10mA 5mA 100mV 20Ω 0.1



Model Specifi cations Rated Pr.Current Max. Current Rated Sec. Current (mA) Rated sampling voltage Load Resistance(Ω) Accuracy Class
PT-402 2A/2mA 2mA 10mA 2mA 100mV 50Ω 0.1
5A/5mA 5mA 10mA 5mA 250mV 50Ω 0.1



Dimensions

PT-401 PT-402

Accuracy test
