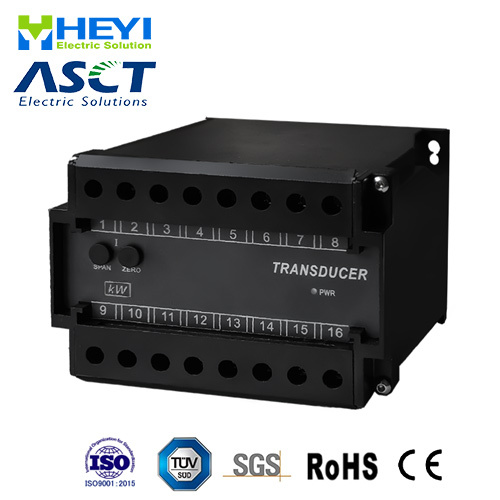

Active Power Transducer are essential components in electrical systems for measuring and monitoring active power within circuits. They convert active power into standardized output signals, enabling real-time monitoring, data acquisition, and energy management.
In summary, Active Power Transducer play a critical role in electrical systems for monitoring and controlling active power. They find applications in power system monitoring, power distribution, motor control, energy management, and power load management across various industrial, commercial, and utility settings. These transducers are integral for maintaining power system stability, safety, and efficiency.
Technical Data
Measurement | 3phase 3wire Or 3phase 4wire |
Input | Voltage: 57.7Vac、100Vac,220Vac,400Vac Current: 1Aac,5Aac |
Standard range | 0-173.2W、0-866W、0-3000W、0~±173.2W、0~±866W,etc. |
Allow overload | Voltage × 1.2 times the nominal value continuous; |
current × 1.2 times the nominal value continuous; | |
current × 10 times the nominal value for 10s | |
Accuracy | 0.2%、0.5% |
Response time | ≤400ms |
Output Voltage | 0~ 10VDC, 0~ 5VDC (load resistance = input voltage /10mAdc) |
Output Current | 0~20mAdc ,4~20mAdc(Load Resistance = 10Vdc / output current) |
Output ripple | ≤0.5% RO peak |
Work environment temperature and humidity | 0~50℃/<80% relative humidity(no condensing) |
Storage conditions temperature and humidity | -20~70℃/ less than 70% relative humidity (no condensation) |
Aux.Power supply | AC/DC 80V~270V can be customized special specifications (DC12V, 24V, 48V) |
Isolate | Input/output/power/shell |
Power consumption | DC about 3W, AC about 4VA |
Shell material | ABS fireproof material |
weighs | about 450 grams |
Compressive strength | AC2Kvrms /min |
Insulation resistance | more than 100 m Ω DC500V |
Shape and size | 120 (L) × 110 (W) × 75 (H) mm |
Installation | 35mm standard guide rail or fixed on the cabinet |

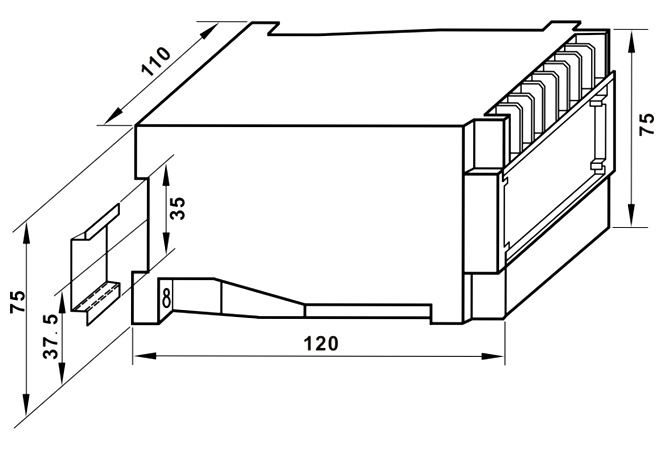

Dimension |
