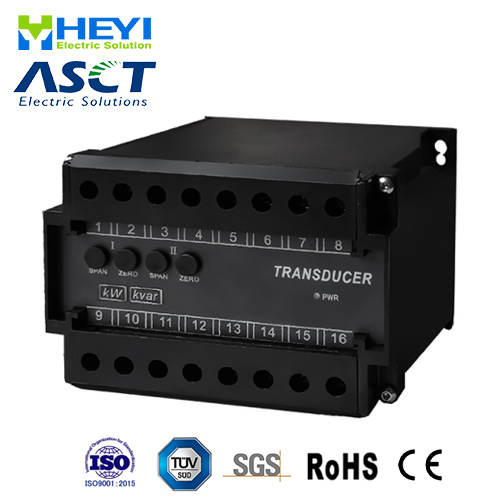

Active & Reactive Combined Power Transducer HYB-WR3

Description

Introduce

Active and Reactive Power Transducer: Revolutionizing Power Management.

The Combined Active and Reactive Power Transducer is a groundbreaking innovation that redefines power management. This advanced device offers the simultaneous measurement of active and reactive power, providing comprehensive insights into power utilization.

Application:

Energy Efficiency Enhancement: By tracking both active and reactive power, it empowers organizations to boost energy efficiency and reduce wastage.

Comprehensive Power Quality Analysis: The transducer provides a complete power profile, aiding in the identification and resolution of power quality issues.

Cost Savings: Optimize power consumption, reduce costs, and enhance financial sustainability through holistic power management.

Energy Management: By measuring active power, businesses can implement energy management plans to optimize energy usage, reduce costs, and improve energy efficiency.

Industrial Automation: In industrial automation settings, it serves to monitor power consumption in automated processes, enhancing production efficiency and reliability.

Features:

Dual Power Monitoring: This transducer excels in the simultaneous measurement of both active and reactive power, offering an all-encompassing view of energy consumption.

Unmatched Precision: With exceptional accuracy, it delivers reliable data for precise power management and optimization, ensuring efficient energy use.

Single Device, Multiple Benefits: Eliminate the need for separate transducers; a single device delivers a holistic perspective on power utilization.

Safety and Isolation: Robust insulation ensures operational safety by isolating the measurement circuit from external electrical contact.

Seamless Data Integration: Equipped with communication interfaces, it facilitates effortless data transfer to monitoring systems for real-time analysis.

Technical Data


Measurement	3phase 3wire Or 3phase 4wire
Input	Voltage: 57.7Vac、100Vac，220Vac，400Vac　　Current: 1Aac，5Aac
Standard range for Active	0-173.2W、0-866Wr、0-3000Wr、0～±173.2W、0～±866W ,etc.
Standard range for Reactive	0-173.2var、0-866var、0-3000var、0～±173.2var、0～±866var,etc.
Allow overload	Voltage × 1.2 times the nominal value continuous;
	current × 1.2 times the nominal value continuous;
	current × 10 times the nominal value for 10s
Accuracy	0.2%、0.5%
Response time	≤400ms
Output Voltage	0~ 10VDC, 0~ 5VDC (load resistance = input voltage /10mAdc)
Output Current	0~20mAdc ,4~20mAdc(Load Resistance = 10Vdc / output current)
Output ripple	≤0.5% RO peak
Work environment temperature and humidity	0~50℃/<80% relative humidity(no condensing)
Storage conditions temperature and humidity	-20~70℃/ less than 70% relative humidity (no condensation)
Aux.Power supply	AC/DC 80V~270V can be customized special specifications (DC12V, 24V, 48V)
Isolate	Input/output/power/shell
Power consumption	DC about 3W, AC about 4VA
Shell material	ABS fireproof material
weighs	about 450 grams
Compressive strength	AC2Kvrms /min
Insulation resistance	more than 100 m Ω DC500V
Shape and size	120 (L) × 110 (W) × 75 (H) mm
Installation	35mm standard guide rail or fixed on the cabinet
