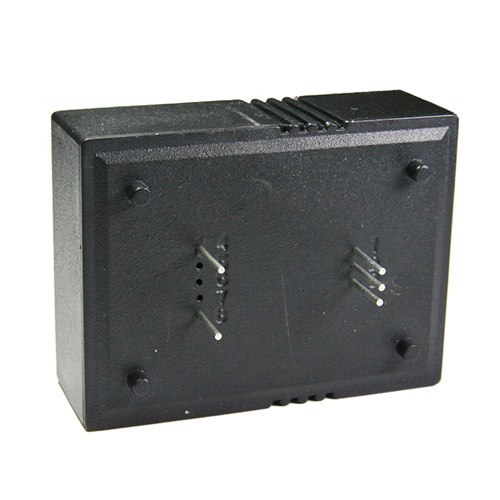

A-VS2 series current mode voltage sensor is a device based on the principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC AC or pulsed currents.
| Type | A-VS2-50V | A-VS2-100V | A-VS2-200V | A-VS2-500V | A-VS2-800V | Unit |
| Rated voltage(Vpn AC) | ±50 | ±100 | ±200 | ±500 | ±800 | V |
| Measure range(Vp AC) | 0—±100 | 0—±200 | 0—±400 | 0—±1000 | 0—±1000 | V |
| Rated output | @Vp=±Vpn ±20±1% | mA | ||||
| Turns ratio(Np/Ns) | 3000:1200 | T | ||||
| Measure resister | 54～360 | Ω | ||||
| Supply voltage | ±12，±15 | V | ||||
| Power Consumption | ≤20+IpX(Np/Ns) | mA | ||||
| Offset current | @Vp=0 ±0.2 | mA | ||||
| Offset drift | @ -40～+85℃ ≤±0.5 | mA /℃ | ||||
| Linearity | @Vp=0-±Vpn ≤0.2 | %FS | ||||
| Response time | ≤20 | ms | ||||
| Galvanic isolation | @ 50HZ,AC,1min 2.5 | KV | ||||
Dimensions
| Mechanical dimension(for reference only) | Test |
 |
 |
| General date | Value | Unit |
| Operating temperature(TA) | -40 to +85 | ℃ |
| Storage temperature(TS) | -40 to +125 | ℃ |
| Mass(approx) (M) | 45 | g |
Standards
UL94-V0.
EN60947-1:2004
IEC60950-1:2001
EN50178:1998
SJ 20790-2000
